R 4,299.00 R 2,579.40
/

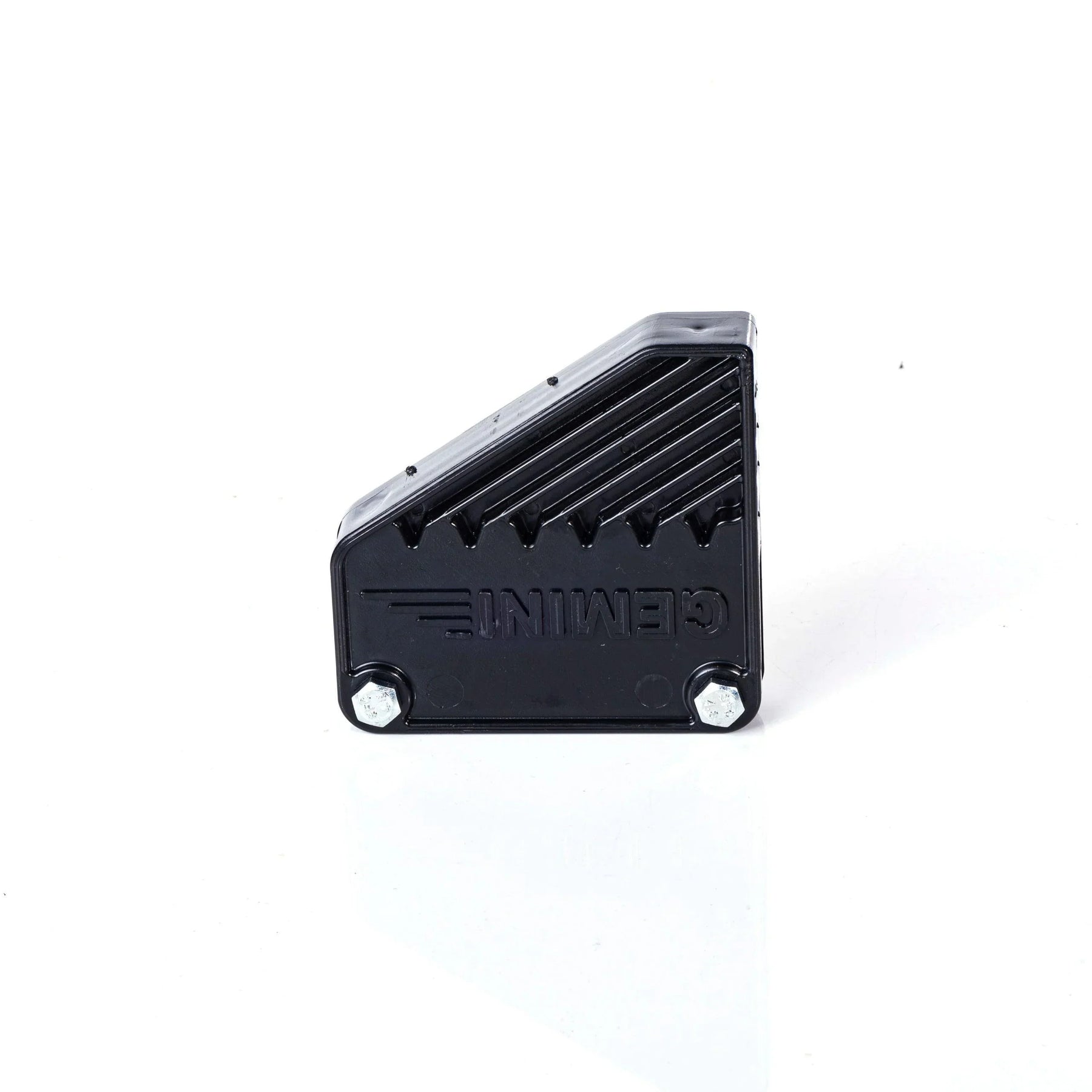

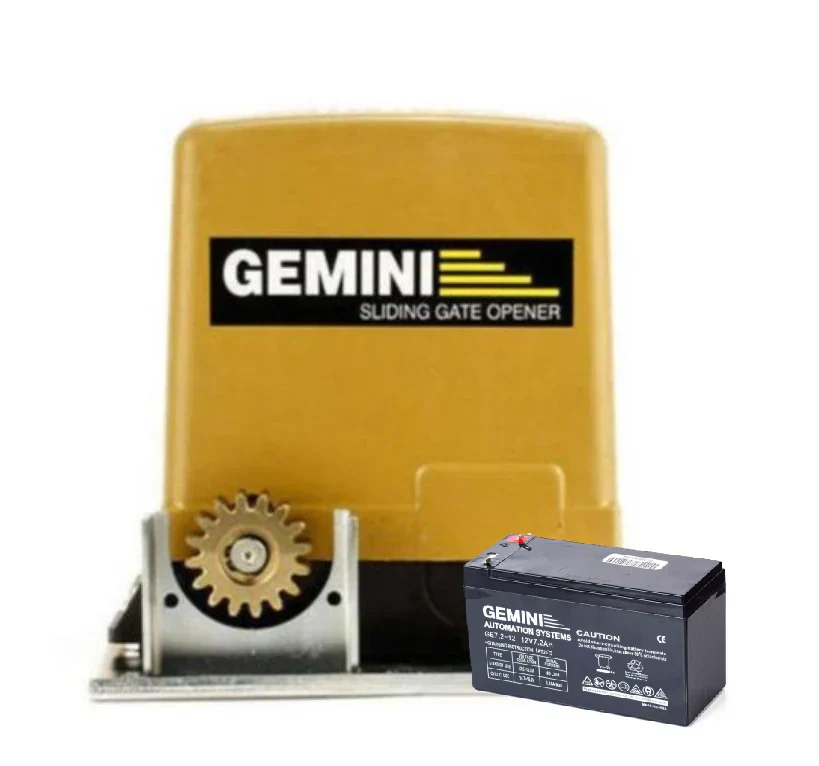

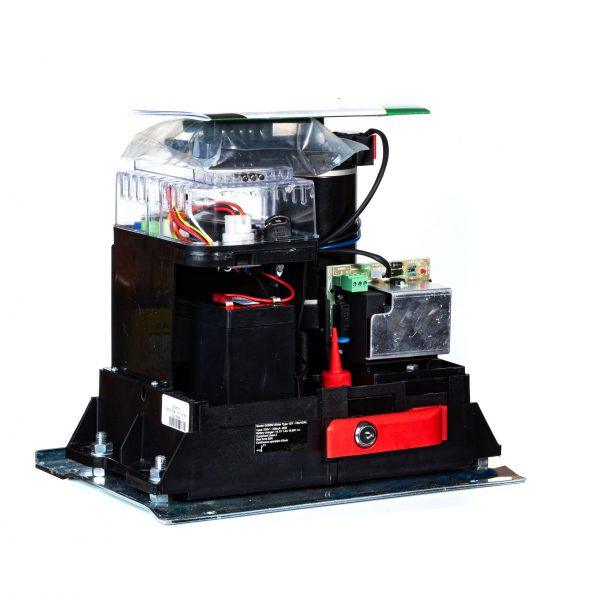

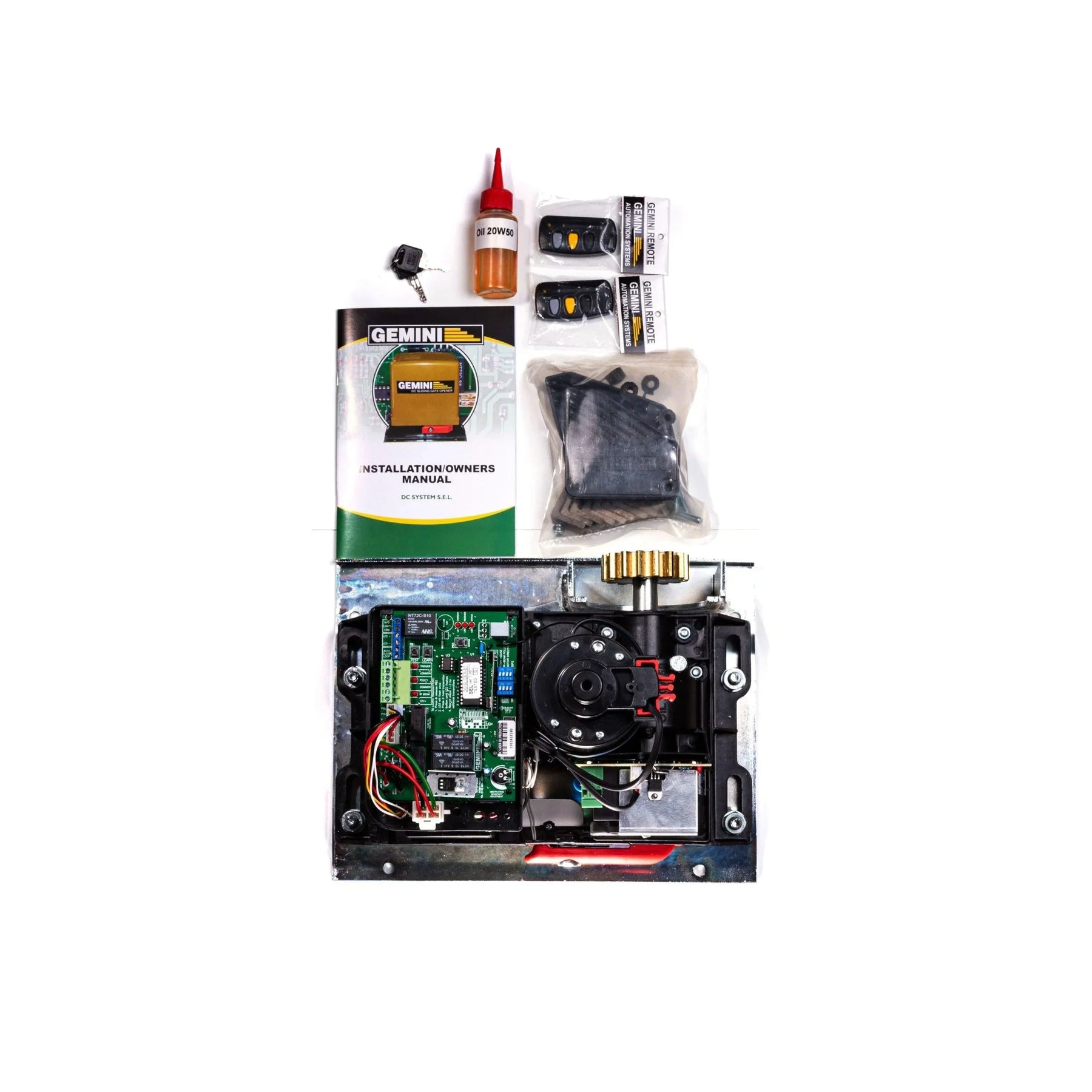

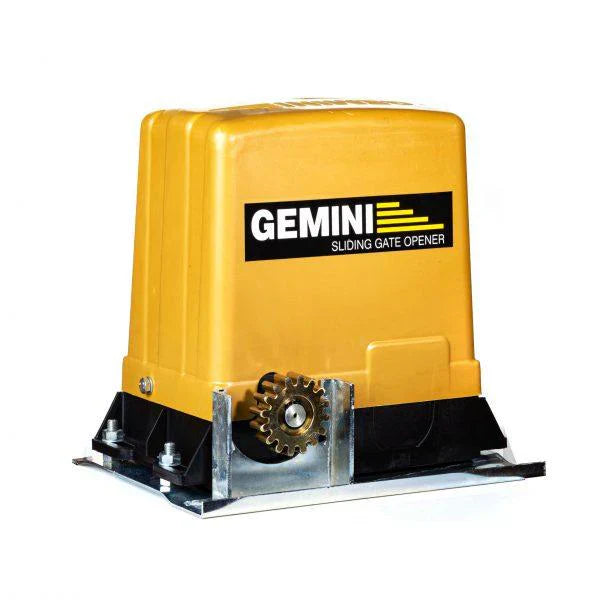

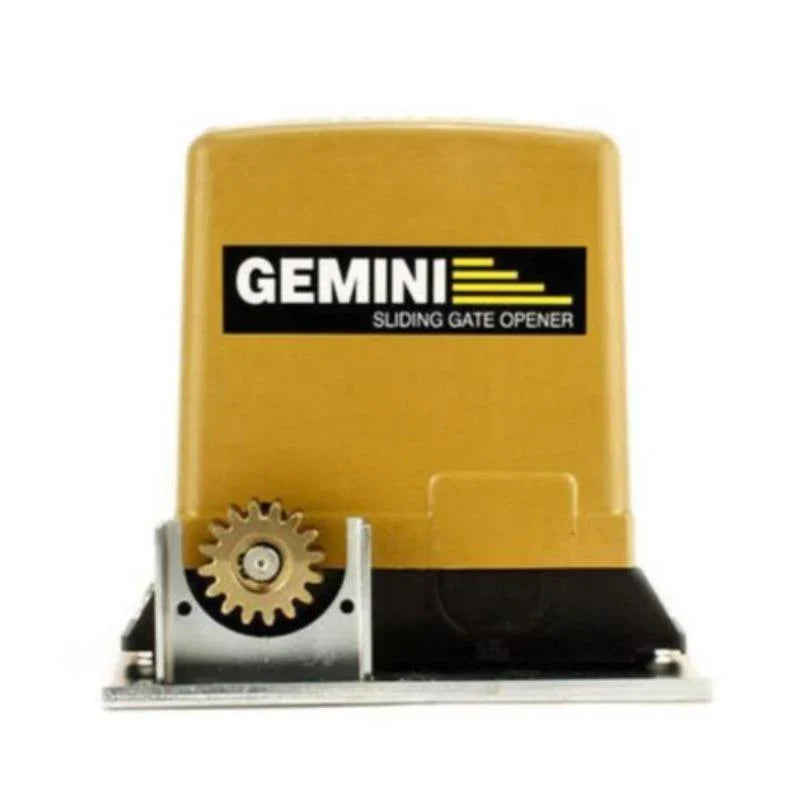

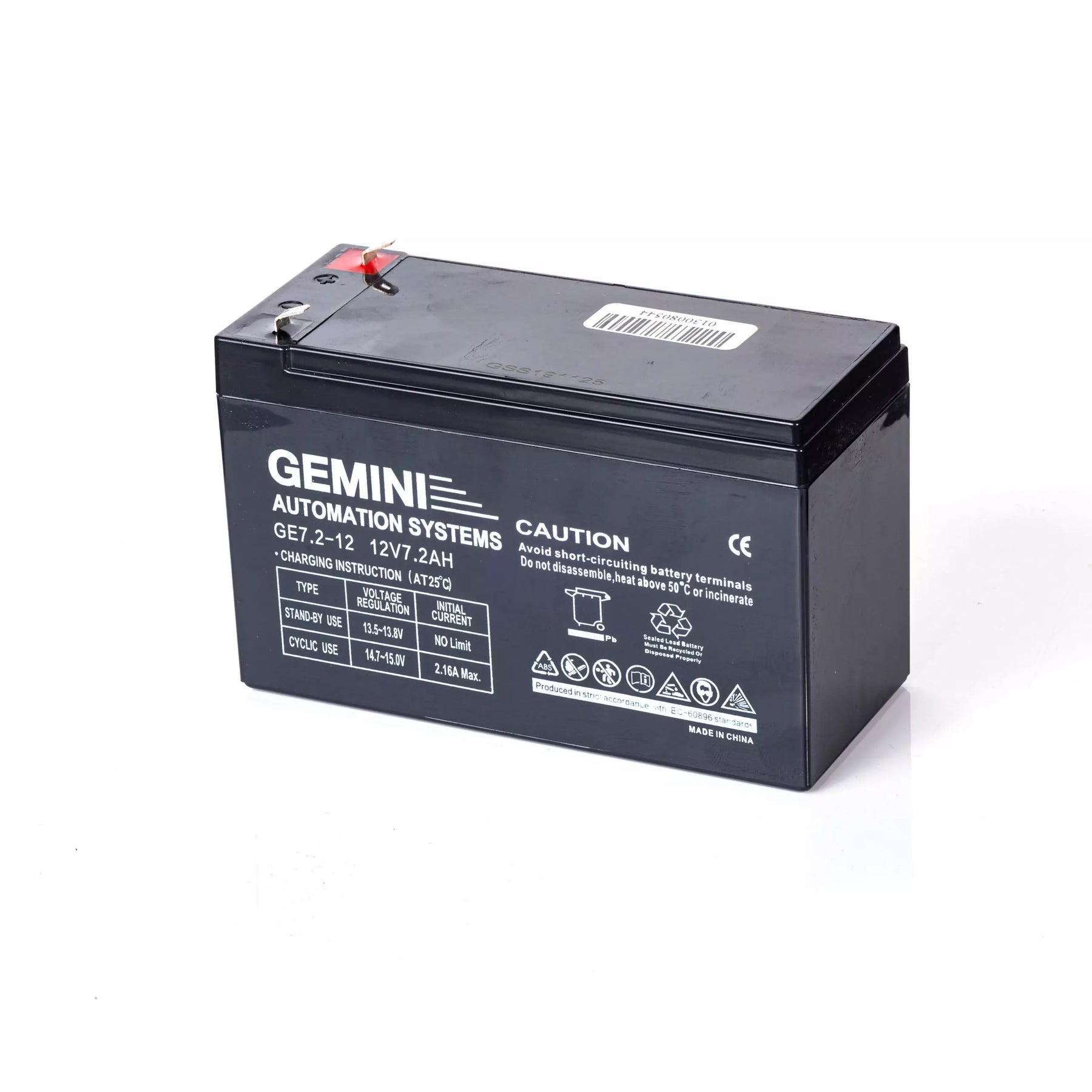

The Gemini DC Slider Gate Motor 7Ah is ideal for domestic use with sliding gates up to 5 meters not weighing more than 500Kg. The Operator is a 12V system and uses a Gemini 12v 7ah Battery for backup power in the event of power failures or load shedding. The unit comes with a baseplate, 2 x 3 Button remotes, 12V 7.2Ah Gemini battery, learning stoppers, instruction manual and 50ml oil to be put into the gearbox before operation.

Features
• Easy to install and user friendly setup
• Reliable battery backup will allow the gate to operate in the event of power outages and load shedding

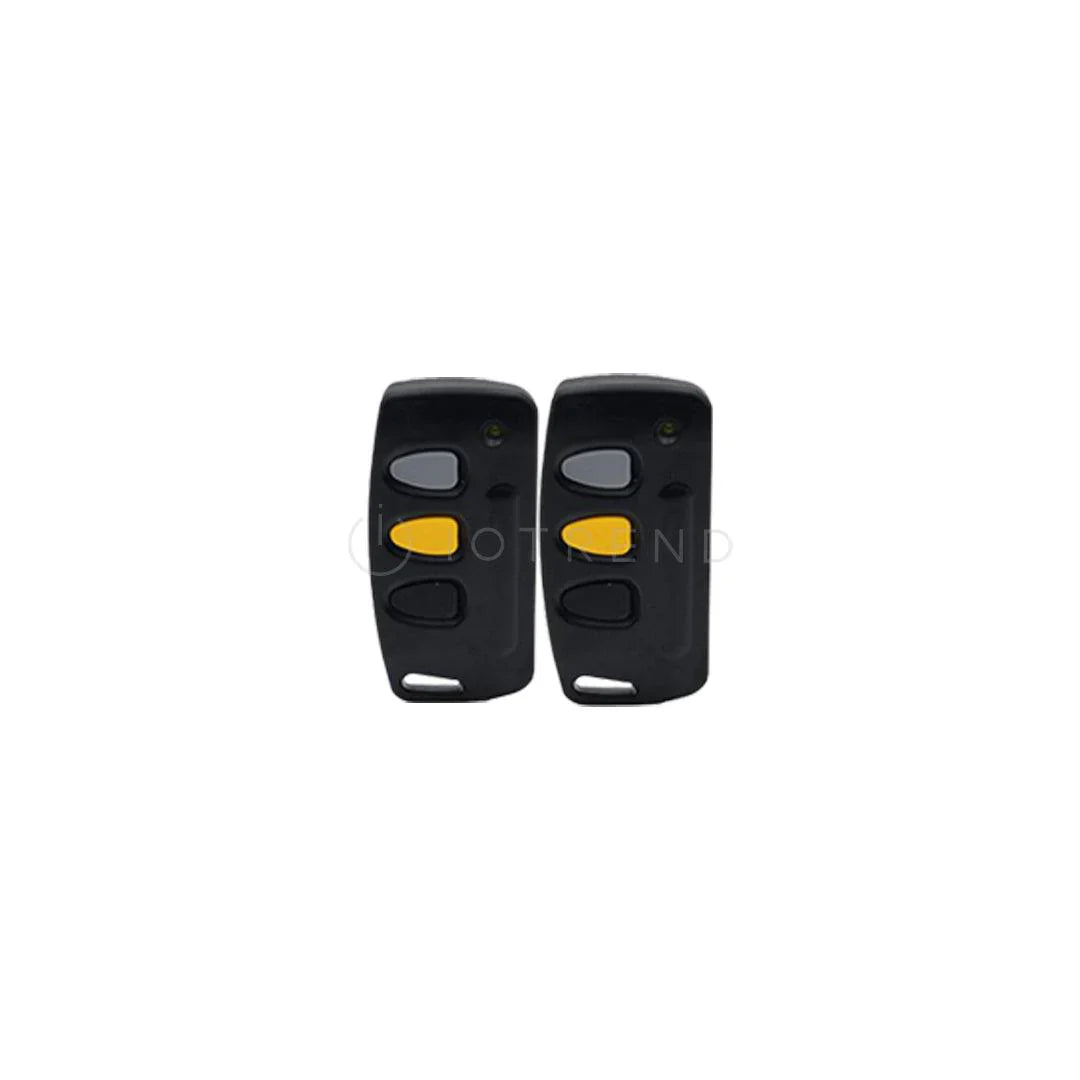

• Built in receiver with 2 x Gemini 3 Button remotes included
• Auto close adjustable time
• Pedestrian facility
• Manual override
• Soft start and close
• Direction change option
• GSM Compatibility
• Affordable
• Safe and reliable
• Maintenance is effortless

Specifications

Brand Gemini
Model Gemini Slider 7AH
Input voltage 220V
Motor voltage 12V DC
Motor size 120 Watt
Electrical consumption 220-260 V / 150 Milli amps
Backup power Gemini 12V 7ah Battery
PCB Controller Gemini DC Slider 12V SEL Controller PCB
Power Supply Gemini DC Slider Power Supply SEL 12V
Compatible remotes 1 Button and 3 Button
Compatible receiver Single channel code hopping
Compatible anti theft bracket Gemini DC Slider Anti Theft Bracket
Pull force 15 Kgf
Gate speed 22 meter/min
Maximum daily cycle 30 cycles per day
Motor dimensions 340mm(l) x 265mm(w) x 340mm(h)
Motor weight 10.2Kg
Packaging dimensions 360mm(l) x 285mm(w) x 400mm(h)
Mass of unit packed 14Kg
Warranty - Mechanical & Workmanship Manufacturers 24 Months warranty
Warranty - Electrical Manufacturers 12 Months warranty
