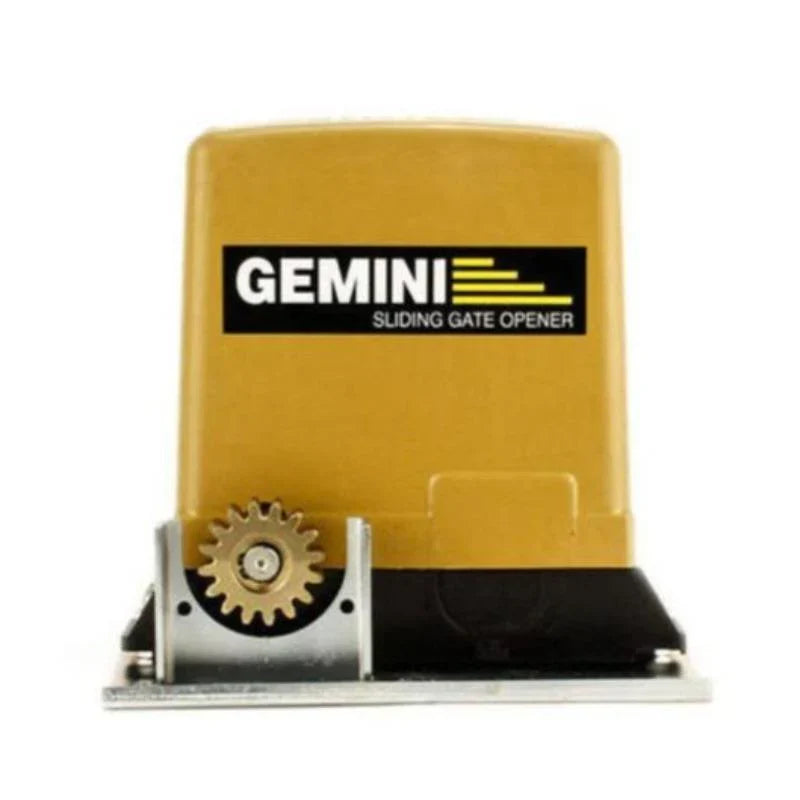

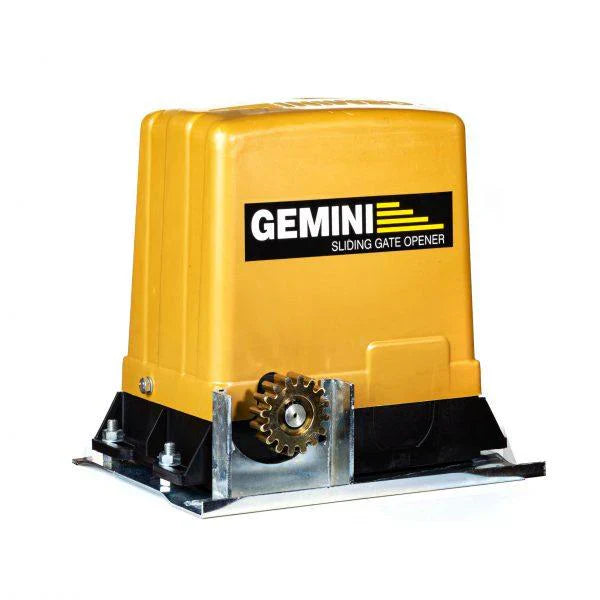

Gemini DC Slider 7AH Gate Motor Kit with Anti-Theft Bracket

The Gemini DC Slider Gate Motor 7Ah is ideal for domestic use with sliding gates up to 5 meters not weighing more than 500Kg. The Operator is a 12V system and uses a 12v 7.2Ah Gemini Battery for backup power in the event of power failures or load shedding. The unit comes with a baseplate, 2 x 3 Button remotes, 12V 7.2Ah Gemini battery, learning stoppers, instruction manual and 50ml oil to be put into the gearbox before operation. This Kit includes the Gemini Anti-Theft Bracket.

Features
• Easy to install and user friendly setup
• Reliable battery backup will allow the gate to operate in the event of power outages and load shedding
• Built in receiver with 2 x Gemini 3 Button remotes included
• Auto close adjustable time
• Pedestrian facility
• Manual override
• Soft start and close
• Direction change option
• GSM Compatibility
• Affordable
• Safe and reliable
• Maintenance is effortless

Specifications

Instructions for use
• Refer to detailed installer manual.

Maintenance and care
• Ensure that the track is kept clear from stones, dirt or any obstruction. Gate brushes can be installed to assist in clearing the obstructions.
• Ensure that the Gate wheels V profile, Gate wheels U profile or GateshoX run freely.
• Manual override the motor and check that the gate runs freely without any obstruction.
• Check that the rack is properly secured to the gate and that it does not press down on the operator pinion at any point while opening or closing.
• Clean around the motor area to ensure that vegetation does not grow to close to the motor and pinion.
• Check that the key still opens and closes the lock barrel and lubricate if necessary.

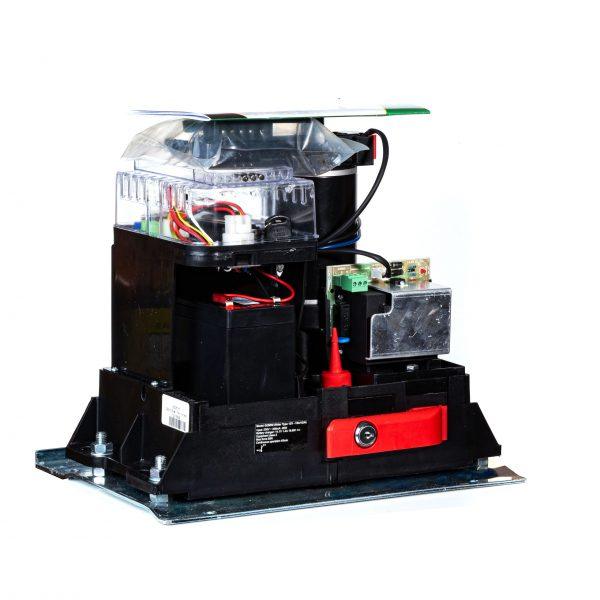

• Inspect the inside of the motor by removing the cover and ensure that it is clear of any insects and dust.

Warnings and limitations
• All installations must be done by a suitable qualified technician.
• Under no circumstances may any of the components be modified.

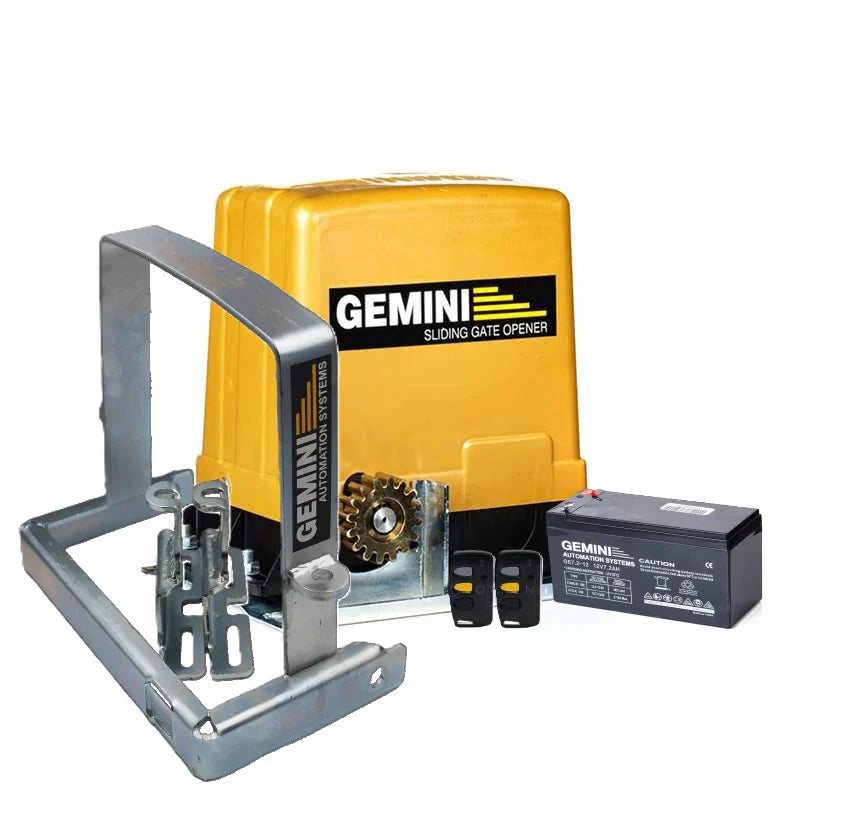

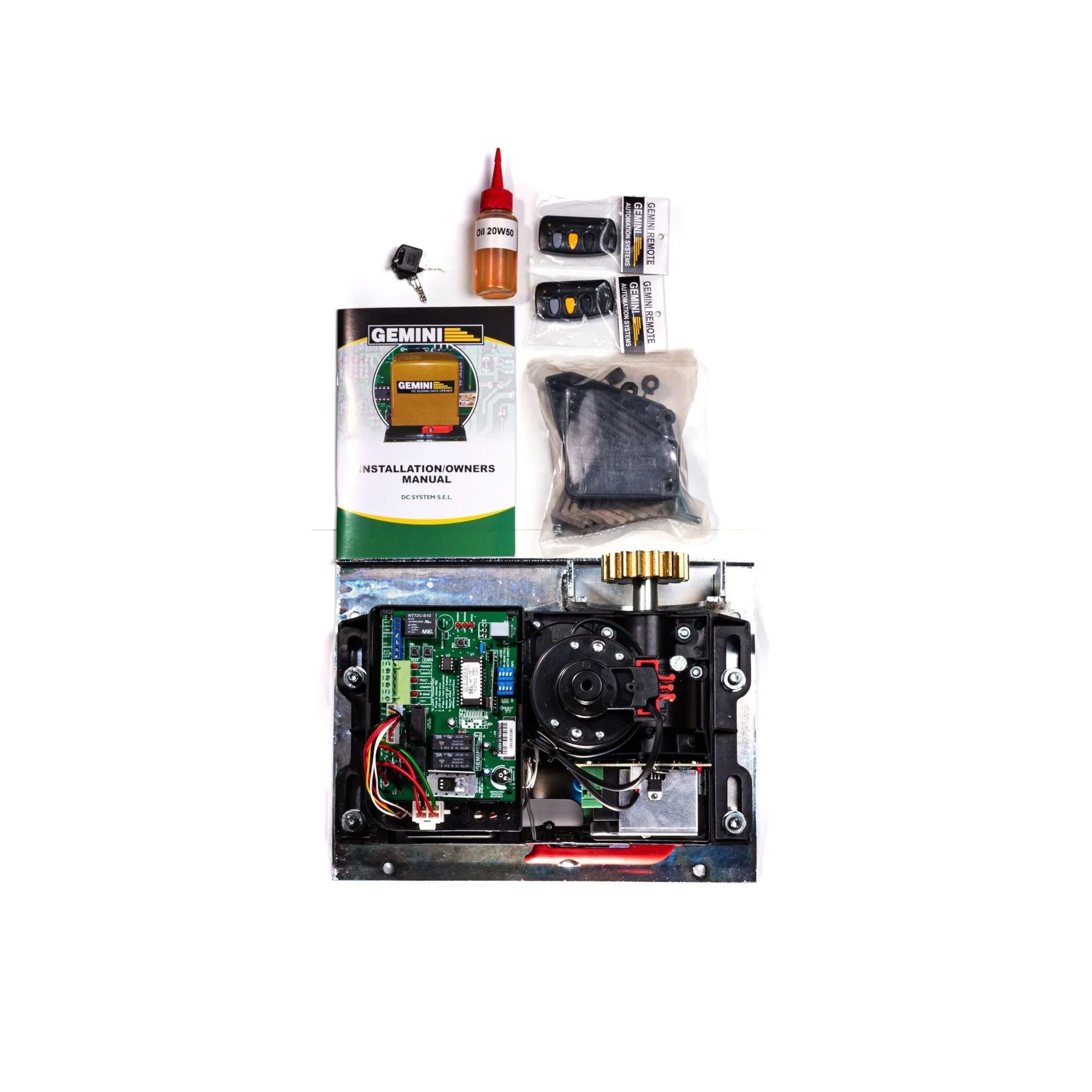

What's in the Kit
1 x Gemini Slider DC Gate Motor 7Ah

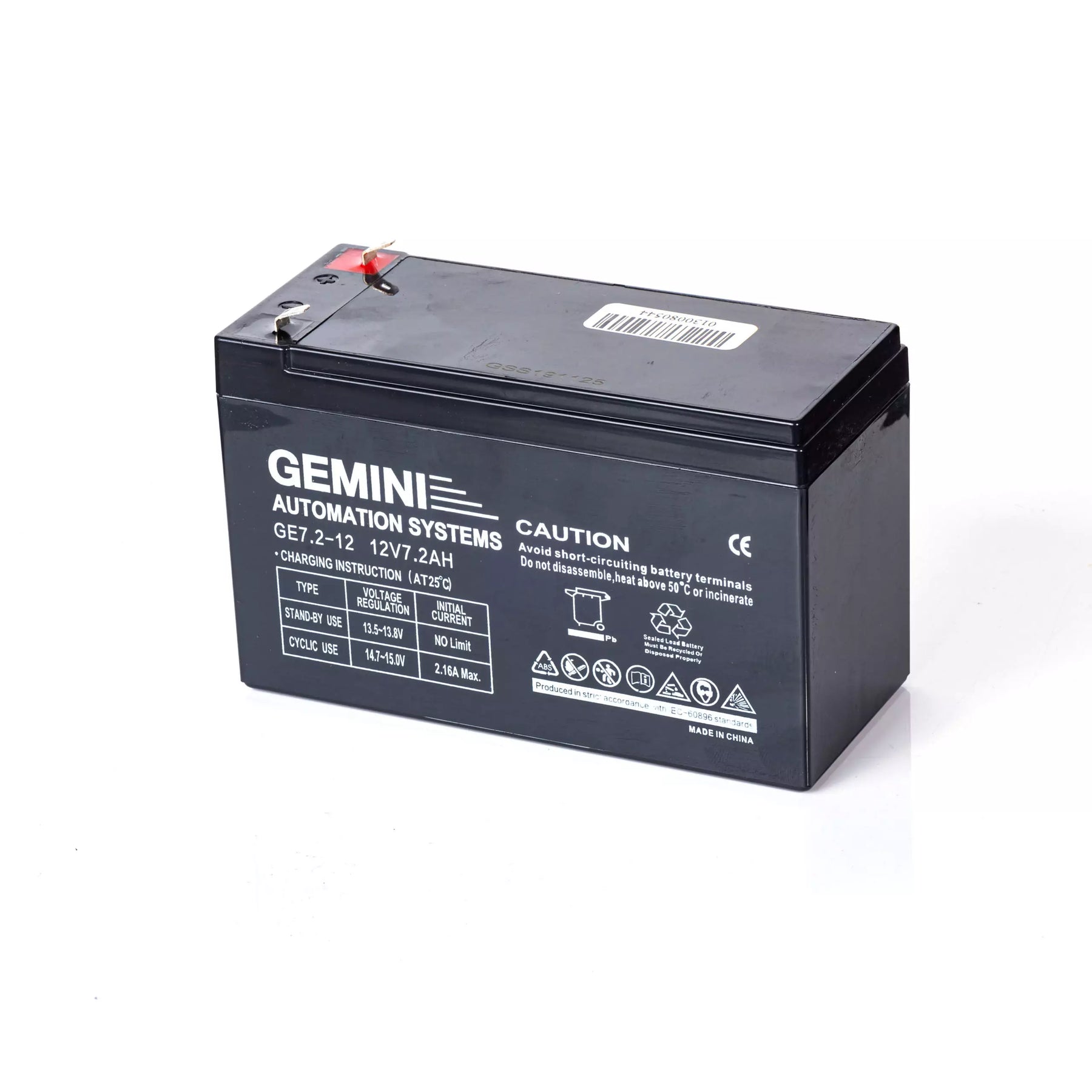

1 x 12V 7.2Ah Gemini Battery

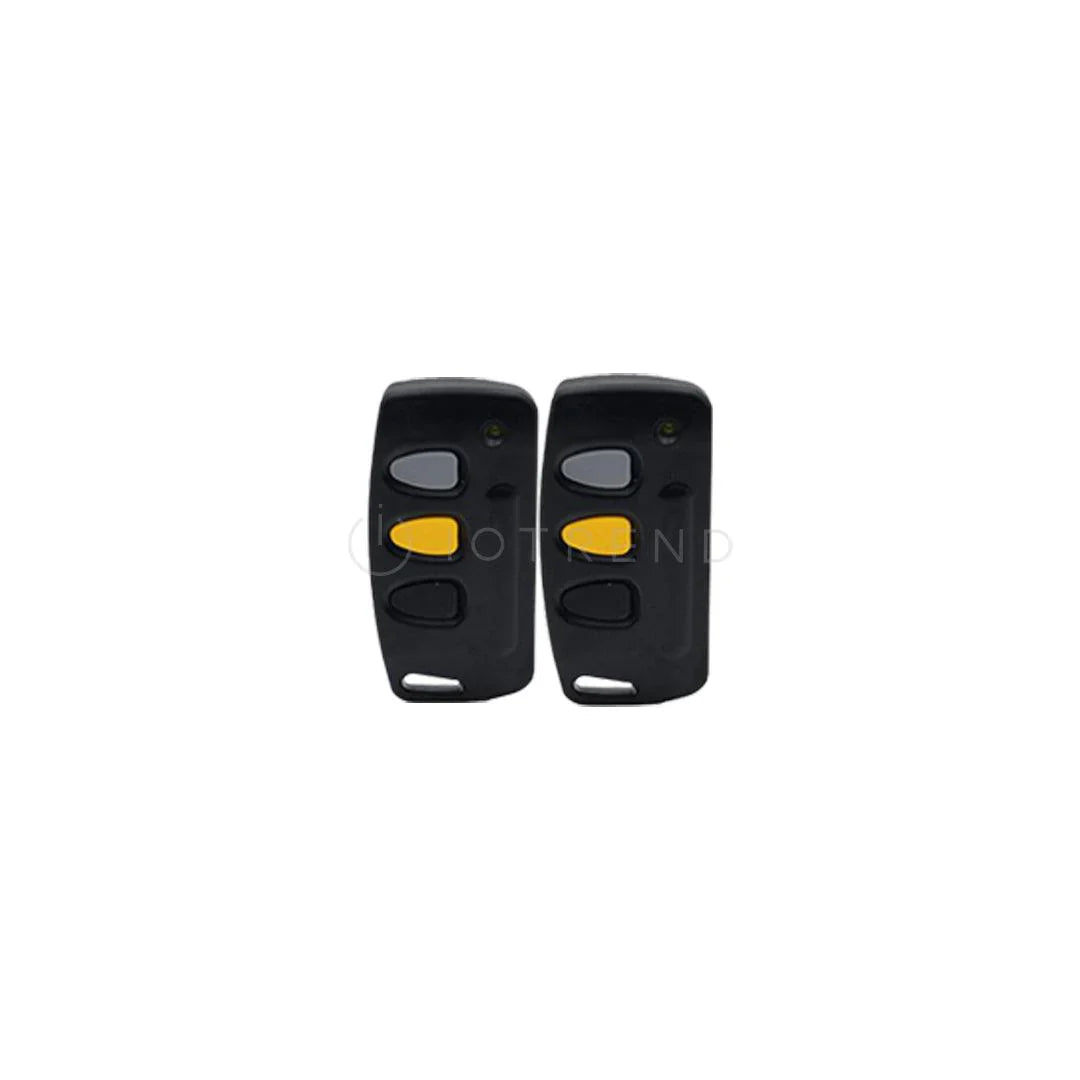

2 x Gemini 3 Button 433Mhz code hopping remotes
1 x Base Plate and mounting accessories

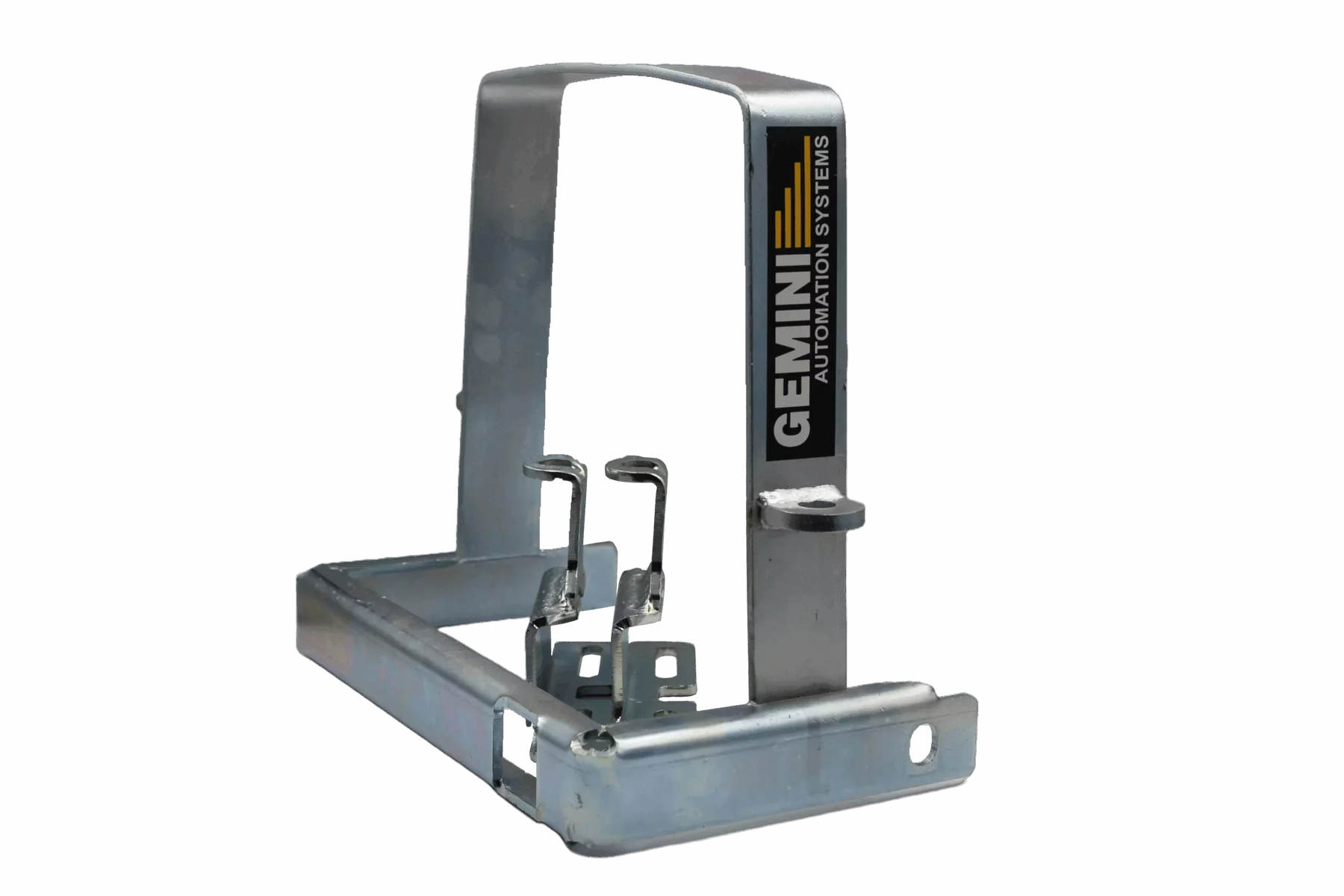

1 x Anti-Theft Bracket
1 x Learning Stoppers
1 x 50ml Gearbox oil
1 x Instruction Manual
